¶ Kubernetes 에 Prometheus 배포
최신 버전 Prometheus v3.14.0, node_exporter v1.12.1 — 2026-09-20 확인. https://github.com/prometheus/prometheus/releases/latest . Prometheus 3.x 는
prom/prometheus이미지 태그를v3.x로 고정해 쓰고, 설정 문법은 2.x 와 호환된다.
¶ Prometheus & Node-Exporter
¶ Exporter
¶ PVC 생성
¶ PVC for prometheus
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: prometheus-storage
namespace: monitoring
spec:
storageClassName: rook-ceph-block
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 16Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: grafana-storage
namespace: monitoring
spec:
storageClassName: rook-ceph-block
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 4Gi
¶ prometheus cluster role
¶ prometheus_cluster_role
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus
namespace: monitoring
rules:
- apiGroups: [""]
resources:
- nodes
- nodes/proxy
- services
- endpoints
- pods
verbs: ["get", "list", "watch"]
- apiGroups:
- extensions
resources:
- ingresses
verbs: ["get", "list", "watch"]
- nonResourceURLs: ["/metrics"]
verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: prometheus
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: prometheus
subjects:
- kind: ServiceAccount
name: default
namespace: monitoring
¶ Prometheus config map
¶ prometheus_config_map.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-server-config
labels:
name: prometheus-server-config
namespace: monitoring
data:
prometheus.rules: |-
groups:
- name: container memory alert
rules:
- alert: container memory usage rate is very high( < 55%)
expr: sum(container_memory_working_set_bytes{pod!="", name=""})/ sum (kube_node_status_allocatable_memory_bytes) * 100 < 55
for: 1m
labels:
severity: fatal
annotations:
summary: High Memory Usage on {{ $labels.instance }}
identifier: "{{ $labels.instance }}"
description: "{{ $labels.job }} Memory Usage: {{ $value }}"
- name: container CPU alert
rules:
- alert: container CPU usage rate is very high( < 10%)
expr: sum (rate (container_cpu_usage_seconds_total{pod!=""}[1m])) / sum (machine_cpu_cores) * 100 < 10
for: 1m
labels:
severity: fatal
annotations:
summary: High Cpu Usage
# 아래 줄부터 prometheus 서버의 설정 yaml 내용이 된다.
# configmap 을 apply 할 때 아래 내용이 틀려도 에러가 발생하지 않지만
# prometheus가 구동되지 않는다.
prometheus.yml: |-
global:
scrape_interval: 5s
evaluation_interval: 5s
rule_files:
- /etc/prometheus/prometheus.rules
alerting:
alertmanagers:
- scheme: http
static_configs:
- targets:
- "alertmanager.monitoring.svc:9093"
scrape_configs:
- job_name: 'kubernetes-apiservers'
kubernetes_sd_configs:
- role: endpoints
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
action: keep
regex: default;kubernetes;https
- job_name: 'kubernetes-nodes'
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
kubernetes_sd_configs:
- role: node
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- target_label: __address__
replacement: kubernetes.default.svc:443
- source_labels: [__meta_kubernetes_node_name]
regex: (.+)
target_label: __metrics_path__
replacement: /api/v1/nodes/${1}/proxy/metrics
- job_name: 'kubernetes-pods'
kubernetes_sd_configs:
- role: pod
relabel_configs:
- source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
action: replace
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
target_label: __address__
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: kubernetes_pod_name
- job_name: 'kube-state-metrics'
static_configs:
- targets: ['kube-state-metrics.kube-system.svc.cluster.local:8080']
- job_name: 'kubernetes-cadvisor'
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
kubernetes_sd_configs:
- role: node
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- target_label: __address__
replacement: kubernetes.default.svc:443
- source_labels: [__meta_kubernetes_node_name]
regex: (.+)
target_label: __metrics_path__
replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
- job_name: 'kubernetes-service-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
action: replace
target_label: __scheme__
regex: (https?)
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_name
# 주석으로 인식되지 않으므로 실제 적용시는 여기부터 #으로 시작하는 줄은 삭제해야 한다.
# kube-state-metrics를 배포 해야 한다.
# exporter를 추가할 경우 아래 -job_name: 부터 추가해준다.
# 각 용도에 맞는 exporter를 구동해야 한다.
- job_name: 'KUBERNETES_NODE_EXPORTER'
static_configs:
- targets: ['192.168.103.101:9100','192.168.103.102:9100','192.168.103.103:9100','192.168.103.104:9100']
¶ Prometheus deployment
¶ prometheus_deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: prometheus-deployment
namespace: monitoring
spec:
replicas: 1
selector:
matchLabels:
app: prometheus-server
template:
metadata:
labels:
app: prometheus-server
spec:
containers:
# err="open /prometheus/queries.active: permission denied" 에러가 발생하는 경우
# initContainers:
# - name: prometheus-data-permission-fix
# image: busybox
# command: ["/bin/chmod","-R","777", "/prometheus"]
# volumeMounts:
# - name: prometheus-storage
# mountPath: /prometheus
- name: prometheus
image: prom/prometheus
imagePullPolicy: IfNotPresent
args:
- "--config.file=/etc/prometheus/prometheus.yml"
- "--storage.tsdb.path=/prometheus/"
ports:
- containerPort: 9090
volumeMounts:
- name: prometheus-server-config
mountPath: /etc/prometheus/
- name: prometheus-storage
mountPath: /prometheus/
volumes:
- name: prometheus-server-config
configMap:
defaultMode: 420
name: prometheus-server-config
- name: prometheus-storage
persistentVolumeClaim:
claimName: prometheus-storage # 미리 배포한 pvc 와 이름을 맞춰줘야 한다.
¶ Prometheus service
¶ prometheus_service.yaml
apiVersion: v1
kind: Service
metadata:
name: prometheus-service
namespace: monitoring
annotations:
prometheus.io/scrape: 'true'
prometheus.io/port: '9090'
spec:
selector:
app: prometheus-server
type: NodePort
ports:
- port: 8080
targetPort: 9090
nodePort: 30003 # 서비스하고자 하는 포트로 변경

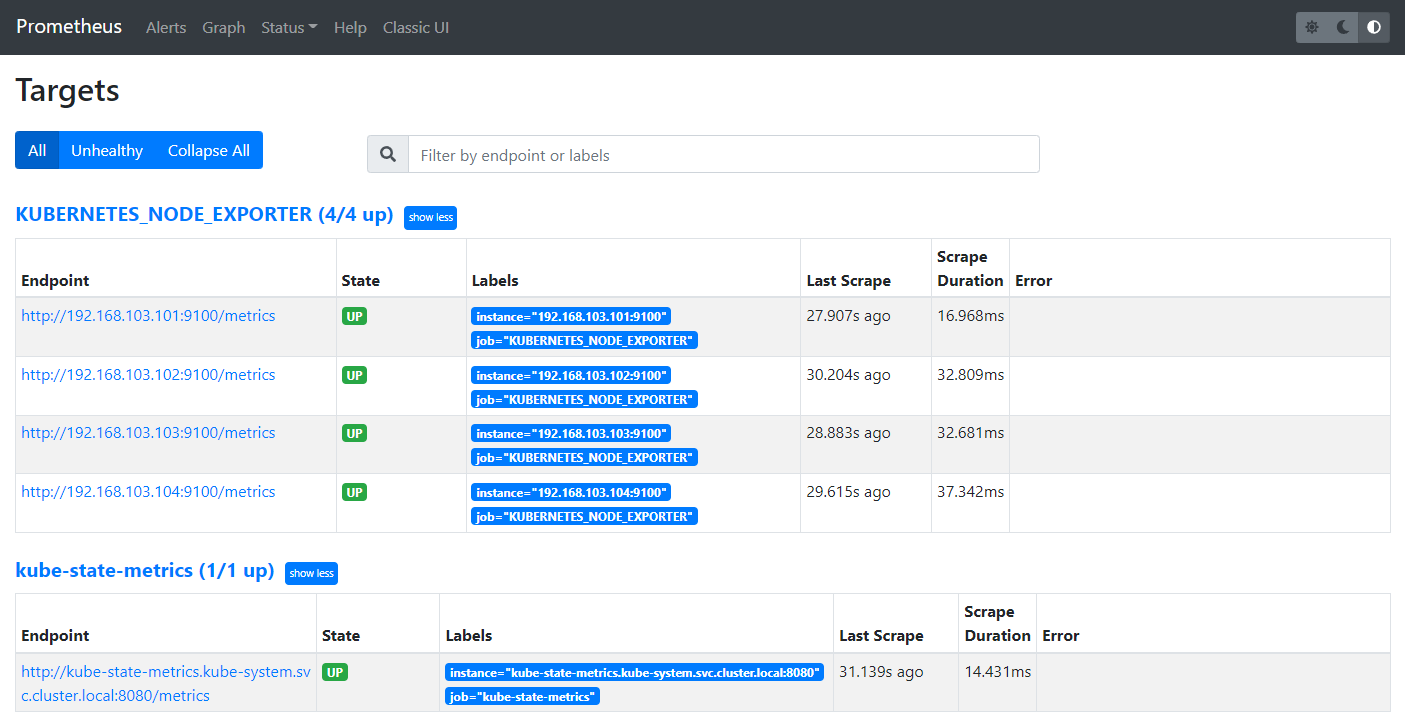

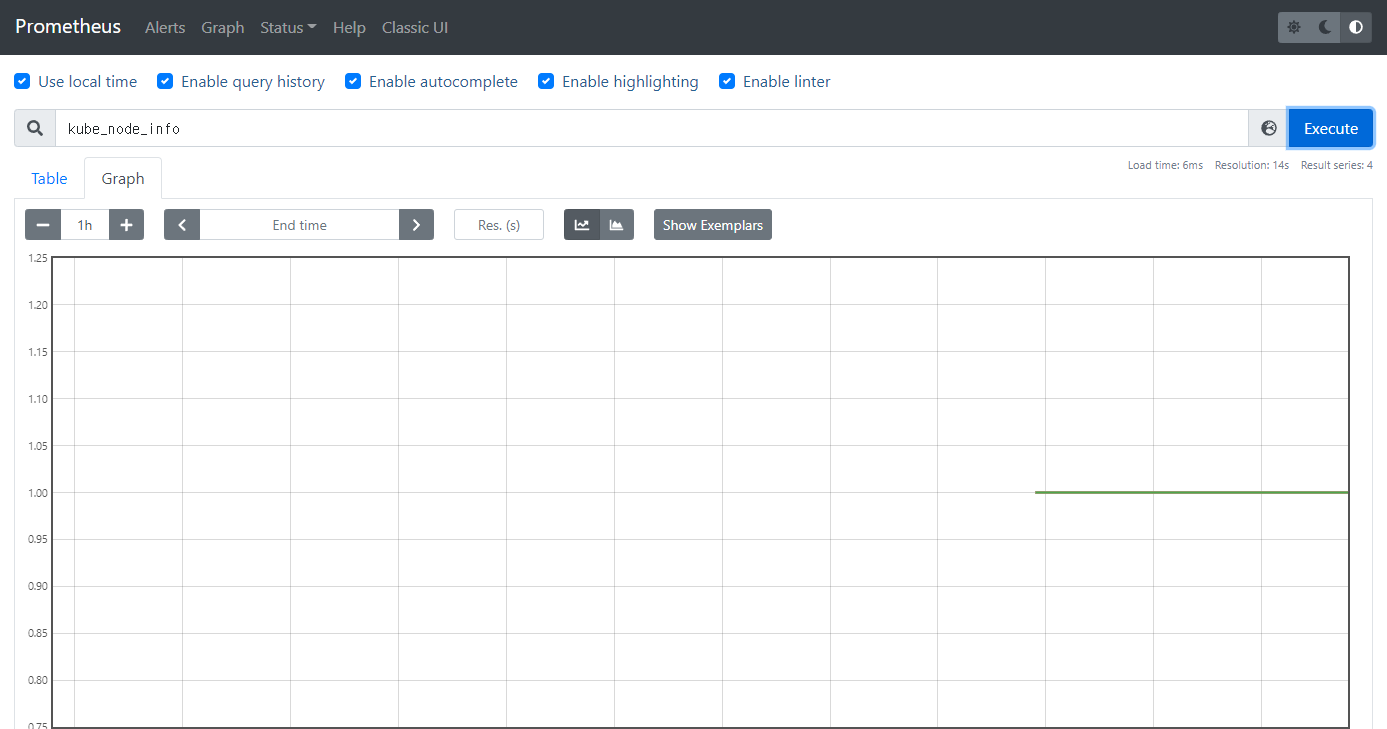

¶ 예시
 |
 |
